Neoden 8 optimisation software

This Neoden web tool can be used for PnP machine configuration file and SMT assembly projects management.
This software will help you to merge machine PnP configuration file with CAD PCB design project file. Application allows import Altium designer, KiCad, OrCad and Eagle created PNP files. Edit project configuration and settings while searching for possible faults. Join feeders and nozzles with parts from project BOM creating sequence for faster placing operation. After corrections project can be downloaded as .csv file and uploaded to PnP machine.

Software is still in testing and development phase so feel free to contact us.

Contact us

News

Close

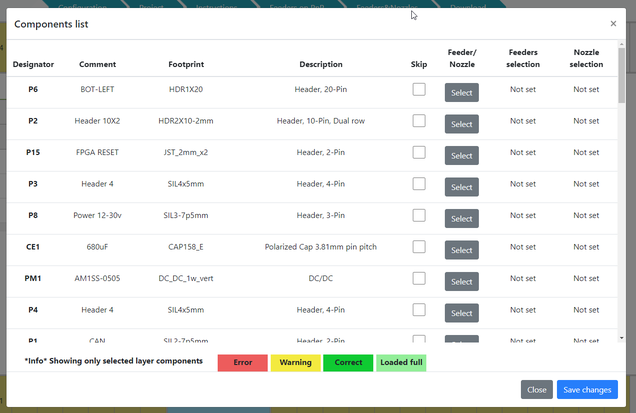

Designator	Comment	Footprint	Description	Skip	Feeder/ Nozzle	Feeders selection	Nozzle selection

Help

Select parts place

Search for part on list

Name	Nominal	Parameter	Footprint	Length	Width	Thickness	Comment	Qty	Feeder	Action

#	Project name	Date

Enter part parameters

Nominal

Parameter

Footprint

Name	Nominal	Parameter	Footprint	Action

Components management

Name	Nominal	Parameter	Footprint	Qty	Feeder	Placement	Action

Name

Nominal

Parameter

Footprint

Length

Width

Thickness

Comment

Created components list

Name	Nominal	Parameter	Footprint	Length	Width	Thickness	Comment	Action

Existing places

Place name	Machine	Action

Create new place

Place name

Machine

Neoden 8 optimisation software users guide

Definitions, Acronyms, and Abbreviations

PnP machine Configuration .csv file - File containing machine configuration (feeders, nozzles, marks, PCB size and position information, etc.) and curent/last used PnP project components.
PnP project .csv file - File exported from your favorite CAM software PCB project containing PnP project components and coordinates.

Web application abilities

This PnP optimisation software provide straigt forward way to import and optimize PnP .csv data from CAM software to Neoden 8 machine. Main Neoden 8 PnP software abilities and features listed below:

Open and Load (last used)/(current) machine configuration .csv file with or without project PnP components data.
Import new PnP project components .csv file from your favorite CAM software and merge data with previously loaded machine .csv configuration file
Prevents users making most of critical errors in confugration file.

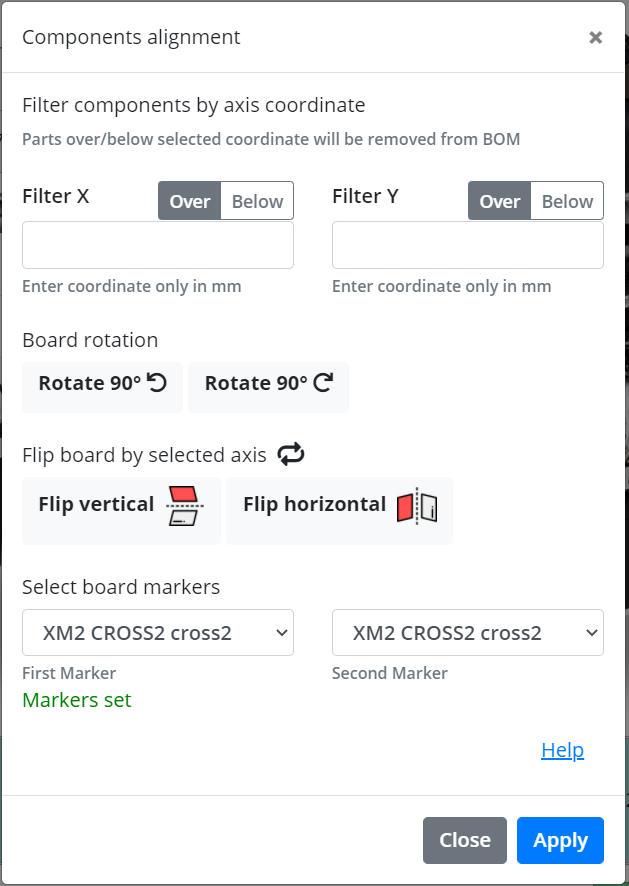

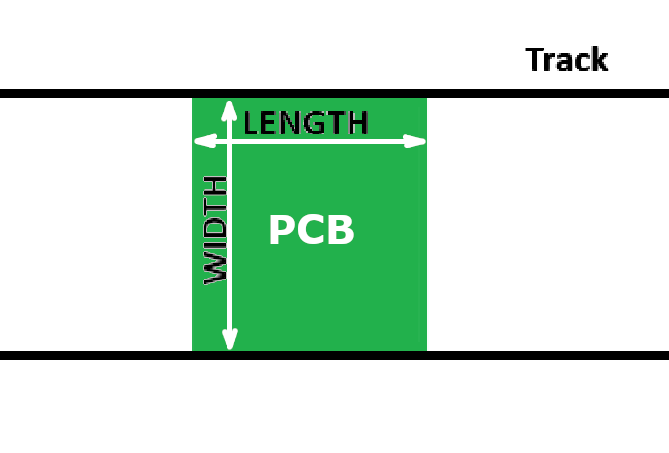

Change PCB parameters, flip and rotate project.

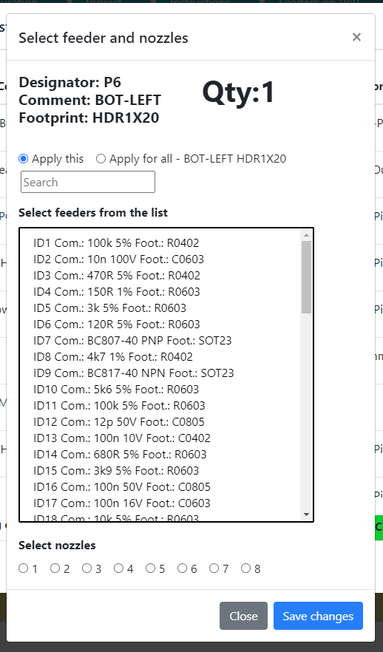

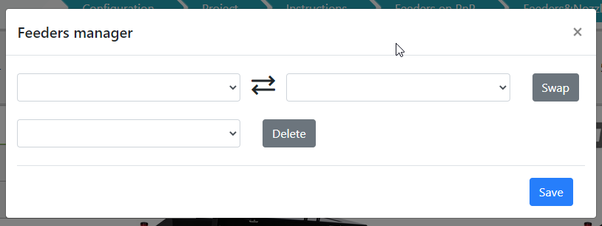

Easy assign feeders to loaded components.
Allow download new .csv configuration file.
And many-many more usefull features...

Step 1: Upload last used Neoden 8 PnP machine .csv configuration file

Click

button and Upload configuration window appears

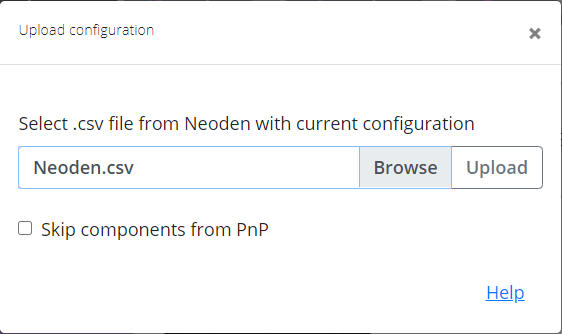

Press Browse button and select Neoden file in .csv format then press Upload button.

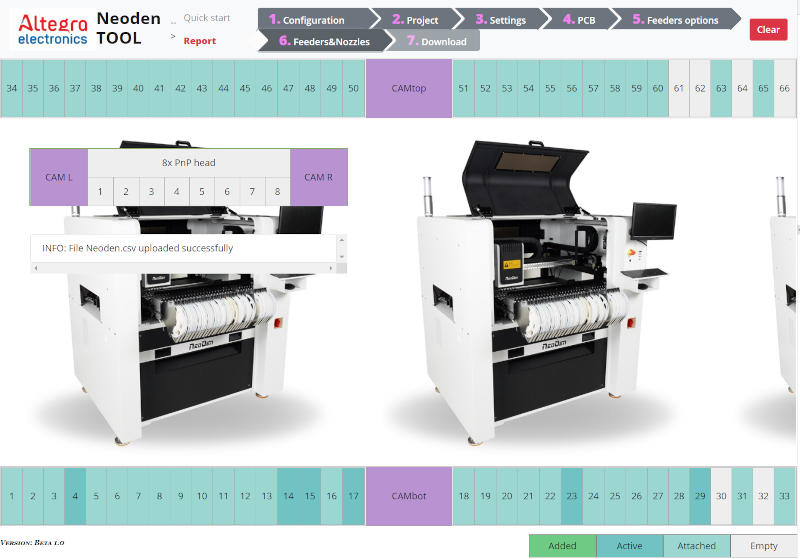

If file format is correct, page will look like shown on View 1. example below. Check for possible loading errors in log window (View 3.)

View 1.

View 2.

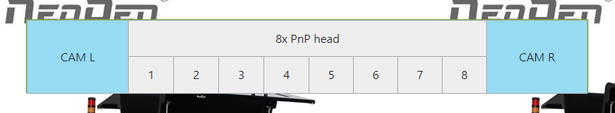

After data loading and validating process finished, all used in current project feeders shows information, when mouse arrow hover on it as shown in View 2. example.

Step 2: upload project file (BOM)

If you want to load new project PnP data from your favorite CAM software or selected Skip components friom PnP option in first configuration upload dialog window, please select

button and Upload components Pick&Place file window appears

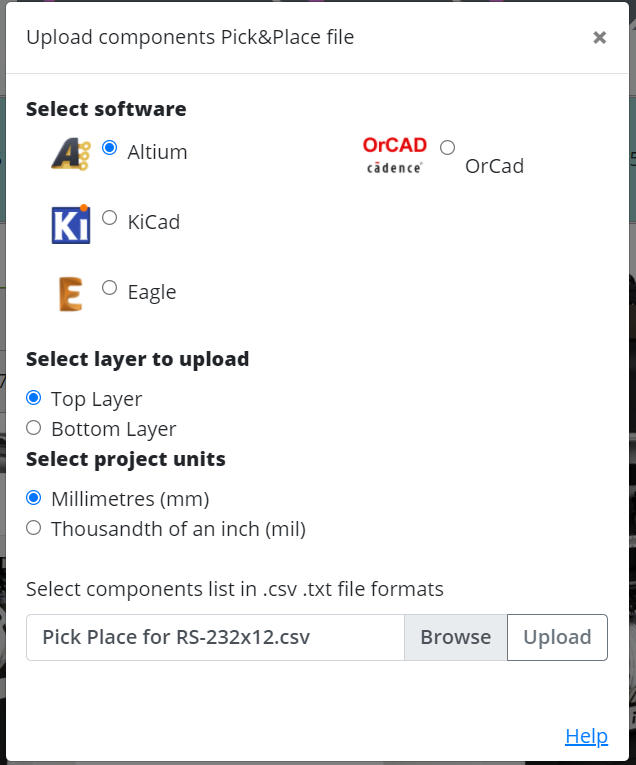

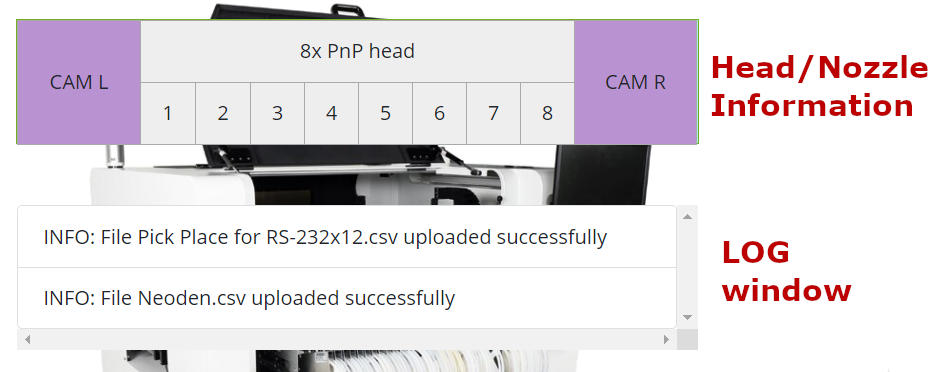

Select PCB Design software, PCB side (Top or Bottom), units then press Browse button and select .csv or .txt format PnP file prepared by your favoriye CAM software. Next, press Upload and INFO message should appear on log list about PnP data import status. View 3.
